Elegant Design

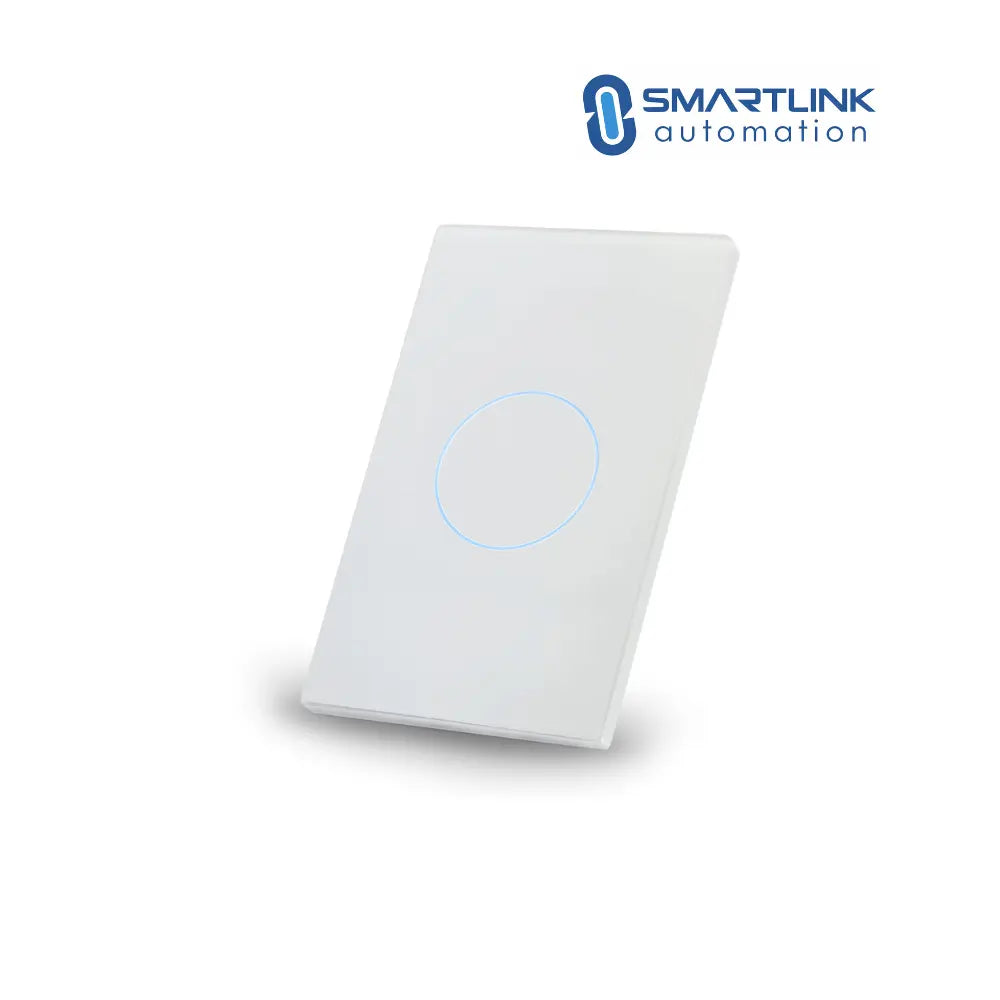

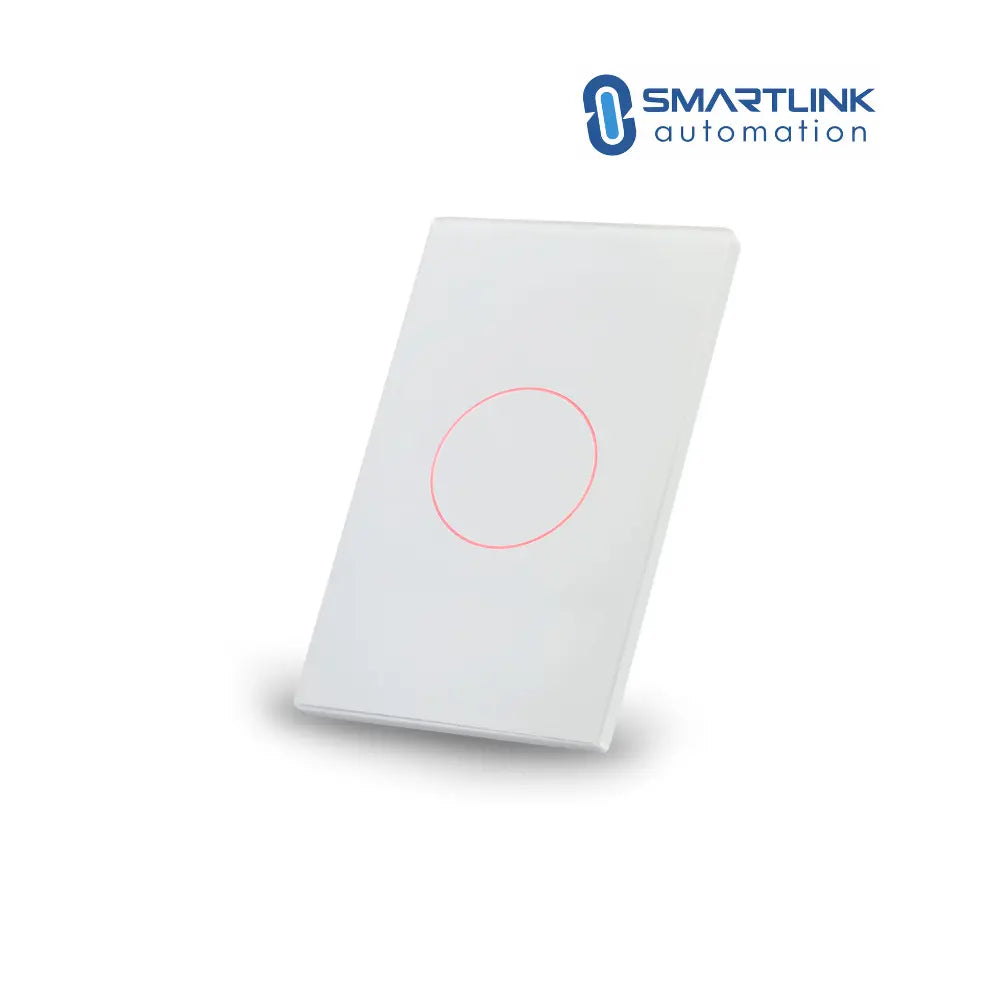

• Elegant designed glass panel with haptic technology touch buttons
-
Easy Installation
• No additional electrical wiring (Neutral wire required)
-
Z-Wave Frequency
• 921.4MHz
-
Electrical Saftey Approval
• Electrical Product Safety Approval Certification (SAA) Australia and New Zealand
-
Flush Mounted
• Sleek flush mount design
General
Dimensions

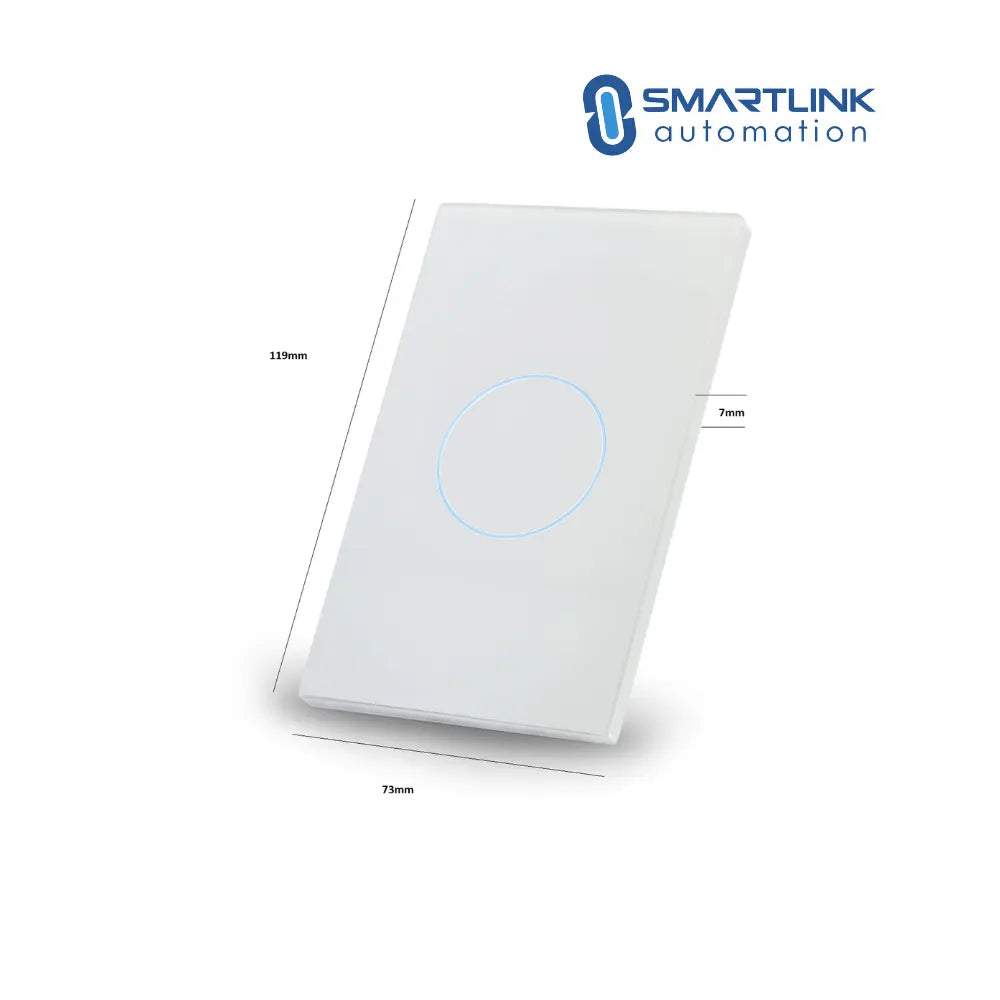

119 x 73 x 7 mm, Depth 36mm
Power Requirements
110-240V ~ 50-60Hz
Power Consumption Standby
< 0.5W
P-Max
Resistor load < 700 W / Channel
Led load < 150W / Channel
Operational temperature
32 F ~ 104 F or 0c ~40c
Humidity
0-40%
Scope of delivery
Touch Panel Switch
2 x Mounting Screws
Warranty
1 year
Wireless Specifications
Wireless Range
100m Outdoor, ~30m Indoor
Radio Protocol
Z-Wave
Radio signal power
max 1mW
Radio Frequency
921.4 MHz Au
Z-Wave Light Switch Inclusion & Exclusion Instructions (8-Second Button Press)
Follow these steps to include your Z-Wave light switch into a smart home controller:
Step 1: Enable Inclusion or Exclusion Mode on the Smart Home controller
- Open your smart home app or Z-Wave hub interface.
- Navigate to the Z-Wave settings and select "Add Device" or "Z-Wave Inclusion."
- Follow any prompts to put the hub in Inclusion or Exclusion Mode.
Step 2: Put the Light Switch in Inclusion or Exclusion Mode
- Ensure the light switch is powered on and within range of the Z-Wave hub.
- Press and hold the a button on the light switch for 8 seconds.
- The LED indicator on the switch may blink or change colour to indicate it has entered learning mode.
Homey Gateway Controller - Download our App to Include or Exclude Devices
Warnings and Considerations
- WARNING! Turn OFF electrical power before installing or servicing this product. Improper use or installation can cause SERIOUS INJURY, DEATH or LOSS/DAMAGE OF PROPERTY.
- WARNING! This devicemust be protected by a circuit breaker.
- WARNING! Connect only in accordance with the diagram presented in the manual. Improper connections maybe dangerous.
- IMPORTANT! This device must be installed by a licensed electrician in accordance with all national and local electrical codes.
- IMPORTANT! If you are unsure about any part of these instructions, consult a qualified electrician.
- IMPORTANT! Using this product in a manner other than outlined in this document voids your warranty. Further, Smartlink Automation is NOT liable for any damage incurred with the misuse of this product.
- IMPORTANT! Do NOT use a power screwdriver to install this device. If you do, you may overtighten the screws and strip them. Also, overtightening the screws may interfere with proper switch operation.
- IMPORTANT! This is an electronic device with intricate components. Handle and install with care!
- Smartlink Automation products based on Z-Wave technology provides many advantages when compared to similar smart Home systems.
- Z-Wave is the leading smart home technology found in millions of products around the world. It is a wireless mesh technology that will not interfere with your Wi-Fi signal and operates on low power. When the technology is utilized inside everyday products such as locks and lights, these products become " smart " - giving them the ability to talk to each other and enabling you to control the devices and thus your home, from anywhere.
- Z-Wave is a wireless radio frequency technology that lets smart devices talk to and connect with one another. Household products, like lights, door locks and thermostats are made "smart" when Z-Wave connectivity is added inside the product's design, giving them the capability to communicate and perform the desired functions that you want.
- Z-Wave operates wirelessly and securely. The devices can be easily accessed and controlled remotely on your smartphone, tablet or computer so you can control your smart home from anywhere in the world! The Z-Wave hub receives a command from you via your smartphone, tablet, or computer and routes the command to the destination device.
